#Braumeister 1000-litre Light
Think even bigger
Portable - Compact - Automatic
The #Braumeister 1000l light without crane was specially developed for commercial brewers with limited space and/or the option of installing their own crane on site, including a rail above the Braumeister.
This saves space, makes handling even easier and more flexible and, of course, makes the brewing system more attractive in terms of price.
The other advantages of the Braumeister concept and the technical data for heating, pump and control remain the same. These include the small space requirement, maximum flexibility as it is on castors, without a crane and made of the highest quality stainless steel.
- Made of stainless steel
- Low space requirement
- Without crane unit
- Brewing quantity: 1000 litres of finished beer (normal beer) = aprox. 1050 l wort
- Max. malt quantity 225 kg
The new touchscreen control
The new automatic control system brews with your own individual recipes and guides you through the brewing process. Recipes and software updates can be synced automaticaly with the integrated wifi. The time and temperature are precisely maintained through all brewing phases. The new touchscreen makes it even easier to operate the Braumeister.
In addition, the large Braumeisters have integrated a new pressure sensor-controlled pump control. The pressure sensor in the pressure line which is connected with the malt pipe allows you to regulate the pump speed via the pressure. The new timer function saves time because, for example, the brewing water can be heated up early in the morning.
Advantages
- New control system with touch screen, integrated brewing guide and Wifi for software updates and sync of recipes
- Pressure sensor controlled pump regulation
Control software:
- Brewing guide - shows also quantity and kind of raw materials
- Precise temperature measuring
- Help informations in the brewing process
- Pump pauses are adjustable
- Integrated Wifi for software updates over the air and sync of recipes with MySpeidel
- Integrated data base of raw materials
- Timer function - for time delayed brew start
- Ferment control allows data of the Tilt-Hydrometer
Control hardware:
- IP 65 water resistant
- Touchscreen 5"
- Additional connections 24V and CAN for future accessories
- Wifi and Bluetooth integrated
Technical details
- Heating coil: 12 x 3.000 W output
- Pump: 370 W
- Power supply connection: 400 V
(fuse protection min. 63 Amp.) - Total power consumption: 38 kW
- Cooling: 2.56 m2 double jacket surface area,
an addtional heat exchanger plate is recommended - Control system: fully automatic brewing control
(temperature, time, pump) - Vaulted lid with DN 150 connection for extractor fan
- Max. malt quantity: 225 kg

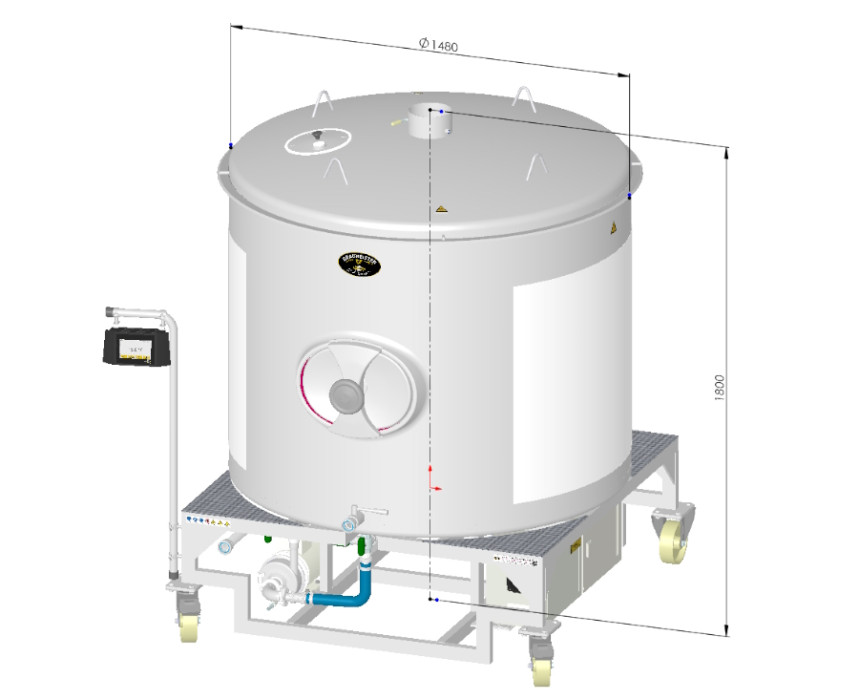

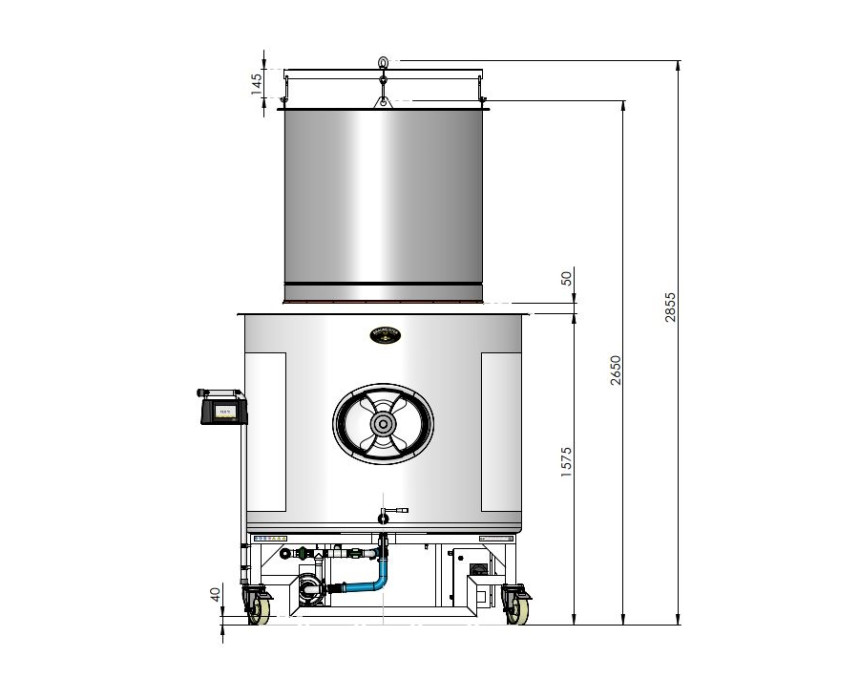

Dimensions
- Length: 148 cm
- Width: 148 cm
- Height: 180 cm
- Weight: 425 kg
weight 475,00 kg
Stock
delivery time
4 Wochen
Product.Nr. 41000-30
Manufacturer: Speidel Tank- und Behälterbau
