#Braumeister 500-litre light
Bigger, but smaller!
Mobile - Compact - Automatic

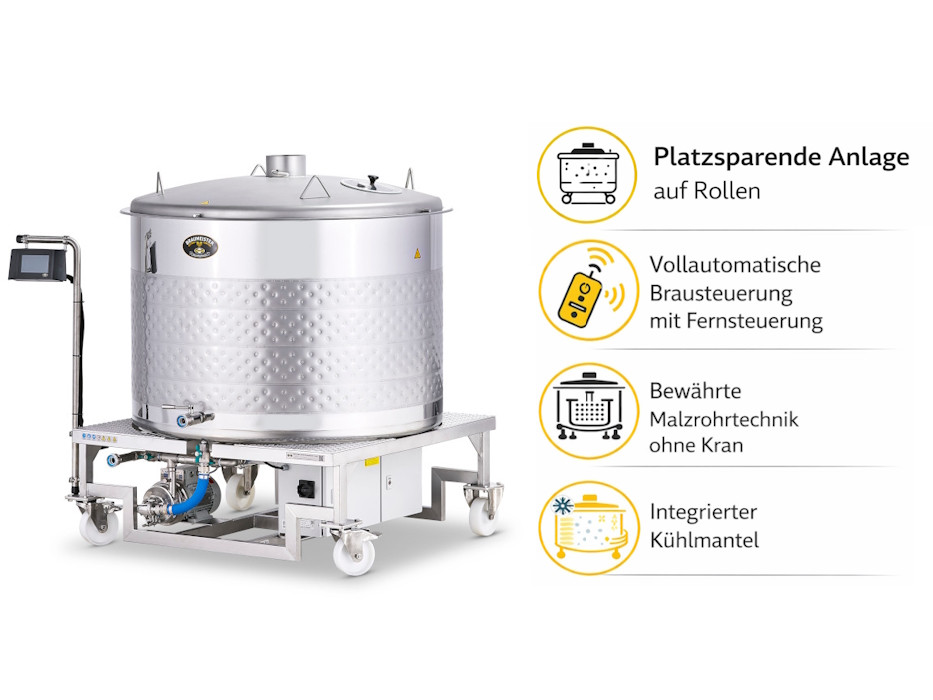

The #Braumeister 500l light without crane was specially developed for commercial brewers with limited space and/or the option of installing their own crane on site, including a rail above the Braumeister.
This saves space, makes handling even easier and more flexible and, of course, makes the brewing system more attractive in terms of price.
The other advantages of the Braumeister concept and the technical data for heating, pump and control remain the same. These include the small space requirement, maximum flexibility as it is on castors, without a crane and made of the highest quality stainless steel.
- Low space requirement
- Flexible on castors
- Without crane unit - crane attached to cover on site with 500 kg lifting capacity
- Made of stainless steel
- Brewing volume 500 litres of finished beer (normal beer) = approx. 550 litres of beer wort
- Max. Malt quantity 120 kg
The new touchscreen control
The new automatic control system brews with your own individual recipes and guides you through the brewing process. Recipes and software updates can be synced automaticaly with the integrated wifi. The time and temperature are precisely maintained through all brewing phases. The new touchscreen makes it even easier to operate the Braumeister.
In addition, the large Braumeisters have integrated a new pressure sensor-controlled pump control. The pressure sensor in the pressure line which is connected with the malt pipe allows you to regulate the pump speed via the pressure. The new timer function saves time because, for example, the brewing water can be heated up early in the morning.
Advantages
- Latest touch screen control with brewing guide and integrated Wifi for updates and recipe synchronisation
- Pressure sensor-controlled pump regulation
Control software:
- Brewing guide - display of exact quantities and ingredients during the brewing process
- Highly accurate temperature measurement
- Assistance during the brewing process
- Flexible adjustment of pump pauses
- Integrated Wifi module for software updates ‘over the air’ and recipe synchronisation
- Integrated ingredient database
- Timer functions - for delayed brewing start
- Data from the tilt hydrometer can also be read into the fermentation programme
Control hardware:
- IP 65 - high water resistance
- 5’ touchscreen
- Additional 24V and CAN outputs for future additions
- Wifi and Bluetooth integrated in control unit
Technology
- Heating coil: 6 x 3,000 W heating power
- Pump: 370 W
- Power connection: 400 V (fuse protection min. 32 Amp.)
- Total connection: 20 kW
- Cooling: 1.8 m2 double shell surface, with ice water approx. 2 h at 25 °C with whirlpool, additional external cooling required for shorter periods
- Control: fully automatic shower control (temperature, time, pump)
- Max. Malt quantity: 120 kg
Dimensions
- Length: 120cm
- Width: 126cm
- Height: 150cm
Advantages
- New control system with touch screen, integrated brewing guide and Wifi for software updates and sync of recipes
- Pressure sensor controlled pump regulation
Control software:
- Brewing guide - shows also quantity and kind of raw materials
- Precise temperature measuring
- Help informations in the brewing process
- Pump pauses are adjustable
- Integrated Wifi for software updates over the air and sync of recipes with MySpeidel
- Integrated data base of raw materials
- Timer function - for time delayed brew start
- Ferment control allows data of the Tilt-Hydrometer
Control hardware:
- IP 65 water resistant
- Touchscreen 5"
- Additional connections 24V and CAN for future accessories
- Wifi and Bluetooth integrated
weight 320,00 kg
Stock
delivery time
3 Wochen
Product.Nr. 46500-30
Manufacturer: Speidel Tank- und Behälterbau
